Description
Product Description
Alloy Structural Steel Plates/ Sheets / Coils/ Strips/ Flat Bars
High Yield Strength Quenched and Tempered ASTM A514 Alloy Steel Plates/ Sheets
ASTM A514 grade A, A514 grade B, A514 grade E, A514 grade F, A514 grade H, A514 grade P, A514 grade Q, A514 grade S
ASTM A514 steel plates are quenched and tempered alloy steel plates of structural quality in thicknesses of 6 in. [150 mm] and under intended primarily for use in welded bridges and other structures.
The maximum thickness of A514 Gr A and A514 Gr B steel plate is 32mm;
The maximum thickness of A514 Gr H steel plate is 50mm;
The maximum thickness of A514 Gr F and A514 Gr S steel plate is 65mm;
The maximum thickness of A514 Gr E, A514 Gr P and A514 Gr Q steel plate is 150mm.
The maximum thickness of A514 Gr H steel plate is 50mm;
The maximum thickness of A514 Gr F and A514 Gr S steel plate is 65mm;
The maximum thickness of A514 Gr E, A514 Gr P and A514 Gr Q steel plate is 150mm.
Product Parameters
Send inquiry now
Send product details such as steel grade, size and quantity to receive an accurate quote.
|
ASTM A514 Steel Plate Chemical Composition
|
||||||||||||||||
|
Element
|
C
|
Mn
|
P
|
S
|
Si
|
Cr
|
Mo
|
B
|
||||||||
|
A514 Gr A
|
0.15-0.21
|
0.80-1.1
|
0.03
|
0.03
|
0.40-0.80
|
0.50-0.8
|
0.18-0.28
|
0.0025
|
||||||||
|
A514 Gr B
|
0.12-0.21
|
0.70-1.0
|
0.03
|
0.03
|
0.20-0.35
|
0.4-0.65
|
0.15-0.25
|
0.0005-0.005
|
||||||||
|
A514 Gr E
|
0.12-0.20
|
0.40-0.7
|
0.03
|
0.03
|
0.20-0.40
|
1.40-2.0
|
0.40-0.60
|
0.001-0.005
|
||||||||
|
A514 Gr F
|
0.10-0.20
|
0.60-1.0
|
0.03
|
0.03
|
0.15-0.35
|
0.4-0.65
|
0.40-0.60
|
0.0005-0.006
|
||||||||
|
A514 Gr H
|
0.12-0.21
|
0.95-1.3
|
0.03
|
0.03
|
0.20-0.35
|
0.4-0.65
|
0.20-0.30
|
0.0005-0.005
|
||||||||
|
A514 Gr P
|
0.12-0.21
|
0.45-0.7
|
0.03
|
0.03
|
0.20-0.35
|
0.85-1.2
|
0.45-0.60
|
0.001-0.005
|
||||||||
|
A514 Gr Q
|
0.14-0.21
|
0.95-1.3
|
0.03
|
0.03
|
0.15-0.35
|
1.0-1.50
|
0.40-0.60
|
–
|
||||||||
|
A514 Gr S
|
0.11-0.21
|
1.10-1.5
|
0.03
|
0.02
|
0.15-0.45
|
–
|
0.10-0.60
|
0.001-0.005
|
||||||||
|
ASTM A514 Steel Plate Mechanical Properties
|
||||||
|
ASTM A514
|
Tensile Strength
|
Yield Strength
|
Elongation in
|
|||
|
Thickness
|
ksi [Mpa]
|
min. ksi [Mpa]
|
2in. [50mm]
|
|||
|
≤20mm
|
110-130 [760-895]
|
100 [690]
|
≥18%
|
|||
|
20-65mm
|
110-130 [760-895]
|
100 [690]
|
≥18%
|
|||
|
65-150mm
|
100-130 [690-895]
|
90 [620]
|
≥16%
|
|||
|

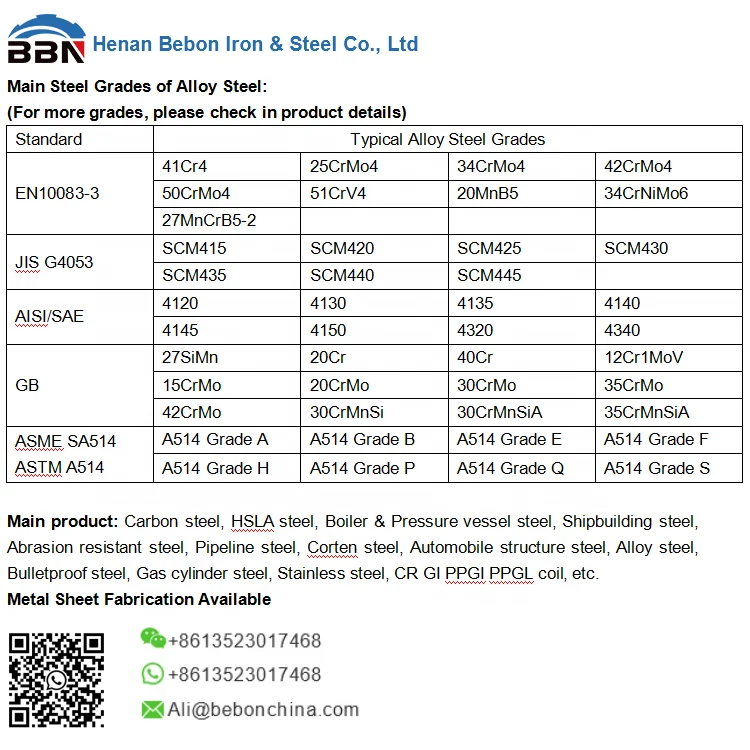

Standard
|
Alloy Steel Grades
|
||||||
|
EN10083-3
|
38Cr2
|
41CrS4
|
50CrMo4
|
51CrV4
|
|||
|
46Cr2
|
25CrMo4
|
30CrNiMo8
|
20MnB5
|
||||
|
34Cr4
|
25CrMoS4
|
34CrNiMo6
|
30MnB5
|
||||
|
34CrS4
|
34CrMo4
|
35NiCr6
|
38MnB5
|
||||
|
37Cr4
|
34CrMoS4
|
36NiCrMo16
|
27MnCrB5-2
|
||||
|
37CrS4
|
42CrMo4
|
39NiCrMo3
|
33MnCrB5-2
|
||||
|
41Cr4
|
42CrMoS4
|
30NiCrMo16-6
|
39MnCrB6-2
|
||||
|
JIS G4053
|
SCM415
|
SCM420
|
SCM425
|
SCM430
|
|||
|
SCM435
|
SCM440
|
SCM445
|
|||||
|
AISI/SAE
|
4120
|
4130
|
4135
|
4140
|
|||
|
4145
|
4150
|
4320
|
4340
|
||||
|
GB
|
20Mn2
|
20MnVB
|
12CrMoV
|
20CrNi
|
|||
|
30Mn2
|
40MnVB
|
35CrMoV
|
40CrNi
|
||||
|
35Mn2
|
20MnTiB
|
12Cr1MoV
|
45CrNi
|
||||
|
40Mn2
|
25MnTiBRE
|
25Cr2MoVA
|
50CrNi
|
||||
|
45Mn2
|
15Cr
|
25Cr2Mo1VA
|
12CrNi2
|
||||
|
50Mn2
|
15CrA
|
38CrMoAl
|
12CrNi3
|
||||
|
20MnV
|
20Cr
|
40CrV
|
20CrNi3
|
||||
|
27SiMn
|
30Cr
|
50CrVA
|
30CrNi3
|
||||
|
35SiMn
|
35Cr
|
15CrMn
|
37CrNi3
|
||||
|
42SiMn
|
40Cr
|
20CrMn
|
12Cr2Ni4
|
||||
|
20SiMn2MoV
|
45Cr
|
40CrMn
|
20Cr2Ni4
|
||||
|
25SiMn2MoV
|
50Cr
|
20CrMnSi
|
20CrNiMo
|
||||
|
37SiMn2MoV
|
38CrSi
|
25CrMnSi
|
40CrNiMoA
|
||||
|
40B
|
12CrMo
|
30CrMnSi
|
18CrNiMnMoA
|
||||
|
45B
|
15CrMo
|
30CrMnSiA
|
45CrNiMoVA
|
||||
|
50B
|
20CrMo
|
35CrMnSiA
|
18Cr2Ni4WA
|
||||
|
40MnB
|
30CrMo
|
20CrMnMo
|
25Cr2Ni4WA
|
||||
|
45MnB
|
30CrMoA
|
40CrMnMo
|
|||||
|
20MnMoB
|
35CrMo
|
20CrMnTi
|
|||||
|
15MnVB
|
42CrMo
|
30CrMnTi
|
|||||
|
ASME SA514
ASTM A514 |
A514 Grade A
|
A514 Grade B
|
A514 Grade E
|
A514 Grade F
|
|||
|
A514 Grade H
|
A514 Grade P
|
A514 Grade Q
|
A514 Grade S
|
||||
EN10083-3 steel
51CrV4, 25CrMo4, 42CrMo4 , etc.
JIS G4053 steel
SCM430 SCM435 SCM440, etc.
ASTM A514 steel
A514 Grade A B E F H P Q S
GB alloy steel: 42CrMo 12Cr1MoV 30CrMnSiA, etc.
AISI SAE alloy steel: 4130 4140 4340, etc.
Alloy steel coils
Alloy steel strips
